Dimplex Revillusion 36-inch Portrait Built-in Firebox with Glass Pane and Plug Kit (RBF36P-FG)
Model: 500002398
$2,559.99
- Stock: In Stock
- Model: 500002398
- : Free Shipping
The Revillusion® RBF36P-FG delivers a tall, portrait presentation with crisp, lifelike flames and a clear view into the firebox. Designed as a built-in unit, it arrives configured with a front glass pane to finish the opening and an included plug kit for straightforward power—no venting or gas lines required.
Use it with or without heat to suit the season, then fine-tune the look with the included controls for day-to-day living. The clean glass finish keeps the opening protected while pairing easily with modern surrounds, making this a practical centerpiece for living spaces, rentals, and light-commercial installs.
- Revillusion® Flame Technology - Revillusion Flame Technology produces ultrarealistic flames that mimic natural fire with the ability to dim the flames.
- Reflective Flame Panel - Includes a translucent acrylic panel that reflects the flames to make them appear from within the logs.
- ThruView™ Full-Depth Design - Enjoy a full view of the fireplace interior with the ability to see clearly through the flames —no obtrusion.
- Powerful Heating - Powerful fan-forced heater provides on-demand heat up to 1,000 square feet.
- Color Enhancement - Flame base colors include red and orange.
- Realogs® Plus - Features Realogs handcrafted and molded from real wood logs, which contain an inner lit LED light that add a glowing, pulsating effect as if the logs are burning.
- Brightness and Flicker - Adjust brightness of interior lighting from high to low to suit the room, including midnight mode which turns off lighting to reduce TV glare.
- All-Season Flames - Enjoy the unique charm of a fireplace 365 days a year without the heat.
- Just Plug It In / Direct-Wire - Unit comes with a 120V plug-in cord kit (not connected to the unit), allowing you to either plug it directly into a wall outlet or hardwire it to a 120V/240V power supply.
- Easy Installation - No venting, gas lines, or piping required; simply frame, wire and finish for quick and easy installation.
| Product Details | |
| BTUs | 4,400 | 6,745 | 8,794 |
| Dimensions | 37 1/4" W x 31 1/8" H x 12 1/8" D |
| Display/Controls | Capacitive touch built-in controls |
| Flame Only | Yes |

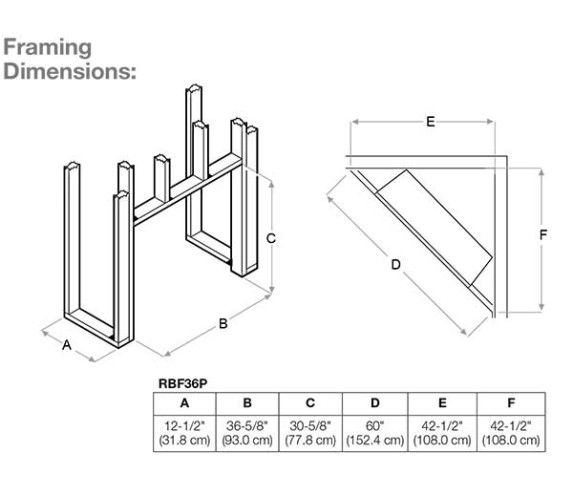

| Framing Dimensions | 36 5/8" W x 30 5/8" H x 12 1/2" D |
| Heat Operation | Primary-Heat - Option to use 240V supply for up to 8794 BTU |
| Heater Only | Yes |
| Heating Range | Up to 500 sq. ft. |
| Installation | Front Sided |
| Interior Surround | Full-brick surround |
| Media | Realogs Plus |
| Portrait Version | The portrait version of the Dimplex Revillusion is taller than the original Dimplex Revillusion. |
| Remote Features | Mood-maker Remote |
| Technology | Revillusion Flame |
| UL Certification | 69098001000 |
| Voltage | 120 V | 208 V | 240 V |
| Warranty | 2 Years |
| Wattage | 1,375 W | 1,975 W | 2,575 W |
| Wiring | Direct-wire (120,208 or 240 volt circuit ) |
- Firebox
- Logs
- Tempered Front Glass
- RBF Plug Kit
- Mood Maker Remote
- Owner's Guide
| Product Warranty Information | |
|---|---|
| Parts | 2 Years |
| Service | 1 Year |
