- Stock: In Stock
- Model: OLF86-AM
Available Options

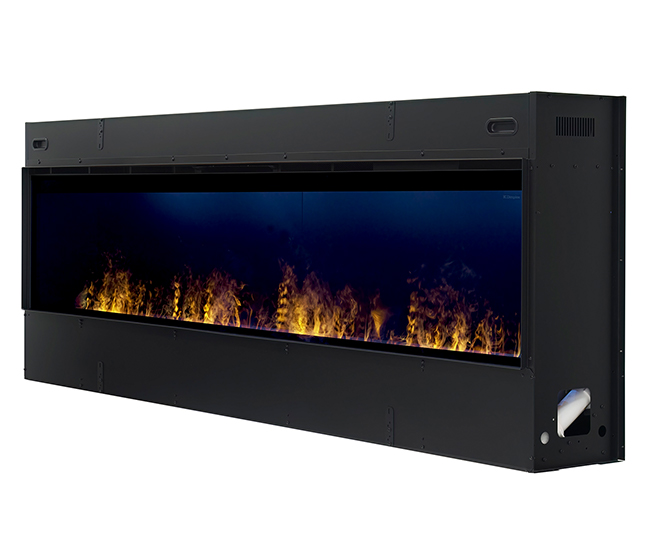

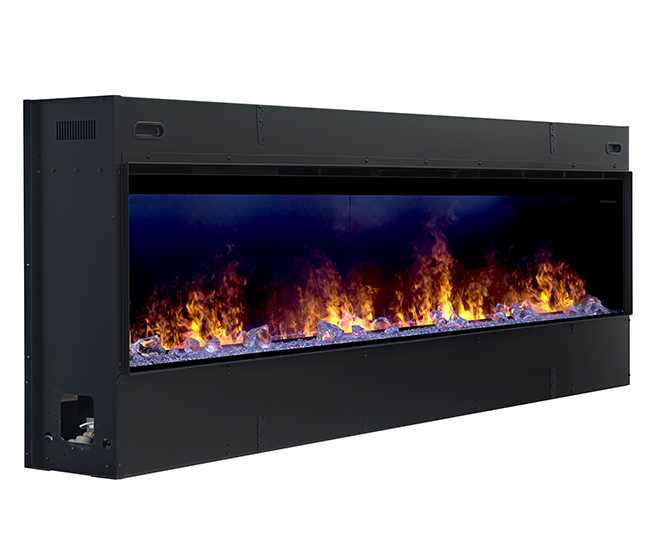

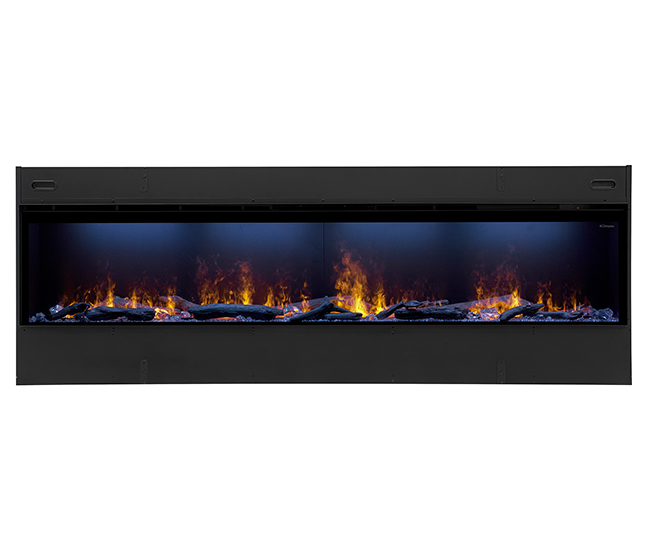

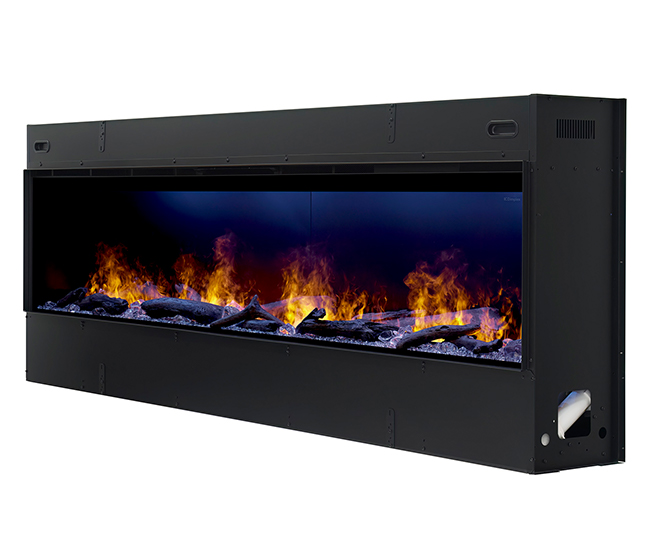

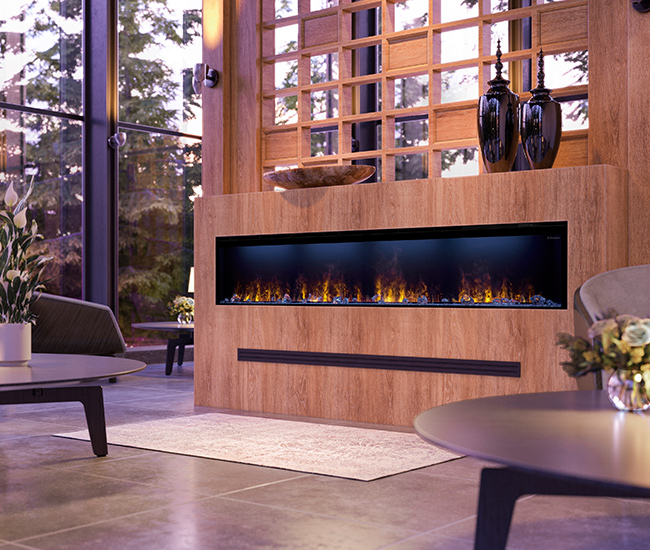

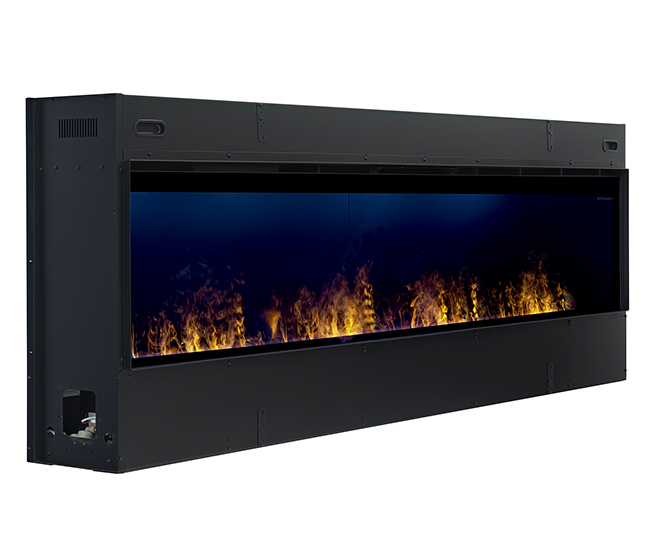

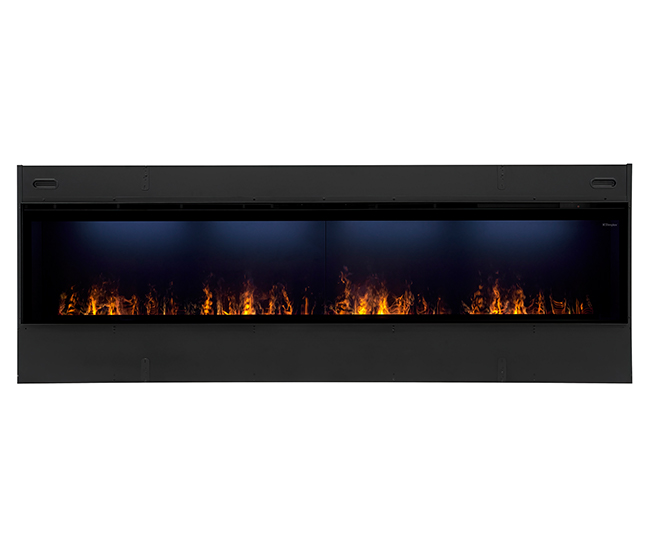

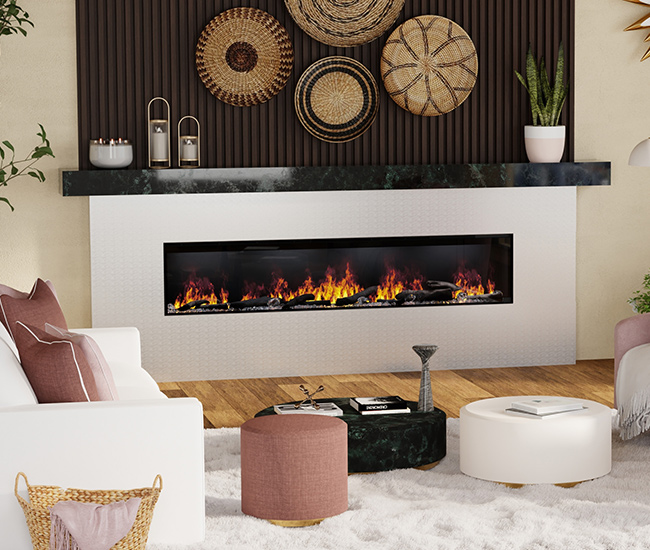

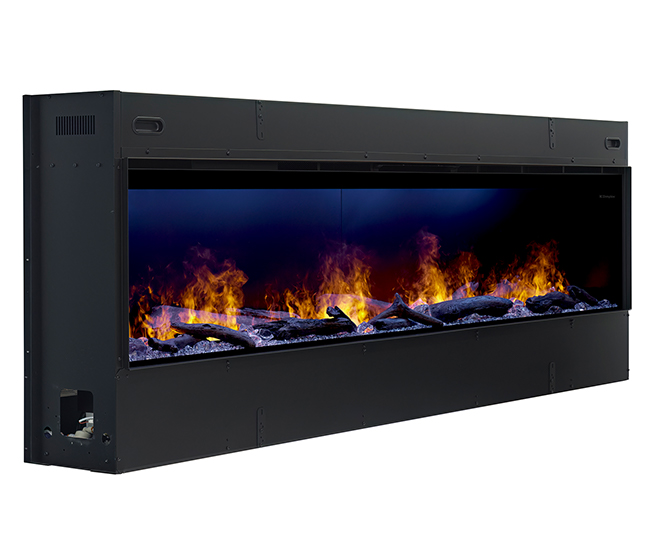

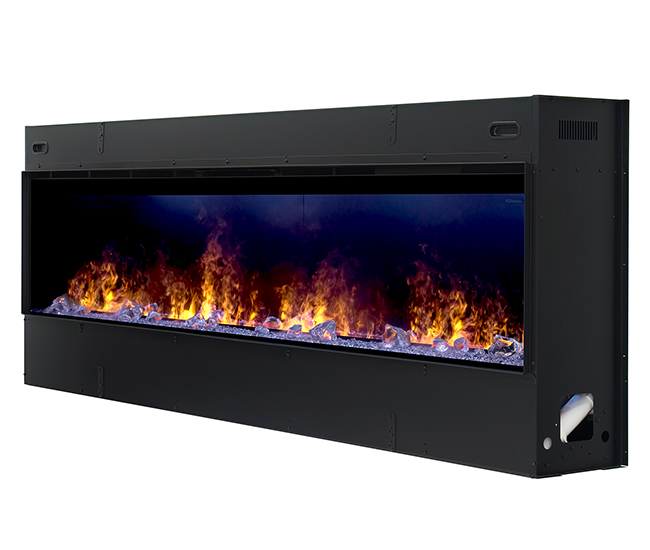

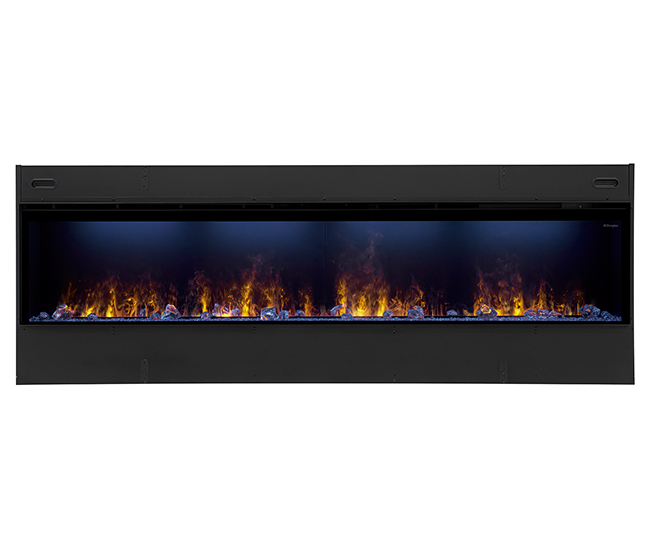

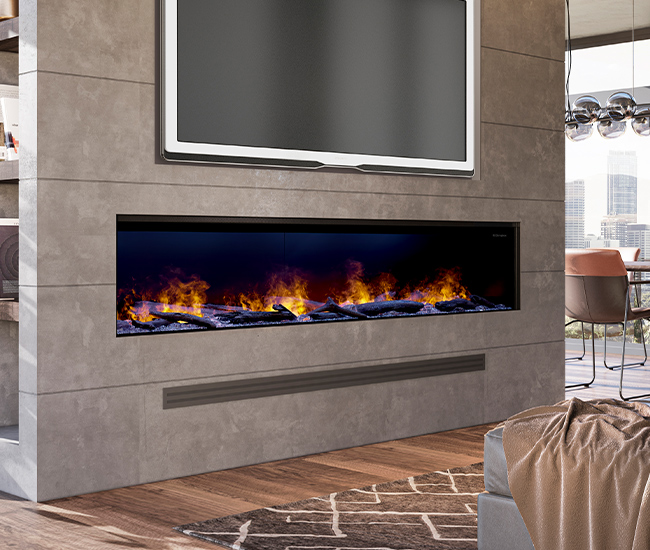

The Dimplex Optimyst® 86-inch Linear Built-In Electric Fireplace creates a commanding contemporary focal point for expansive media walls, great rooms, and custom fireplace designs. Patented Optimyst® water-vapor technology combines water and light to produce realistic three-dimensional flames and smoke-like movement without gas, fuel, or venting. Included lifelike driftwood and acrylic crystal media add texture and depth to the ember bed for a refined, modern hearth display.
Designed for fully recessed installation, the OLF86-AM features a slim 11-7/8-inch depth, fully sealed glass, and a continuous hard-plumbed water supply for extended operation. Customize the atmosphere with 8 flame color themes, adjustable brightness, a top light, and integrated crackling sound effects. Hidden touch controls, the included remote, and the Dimplex Flame Connect App provide convenient control over the flame display, heat, timer, and fireplace settings.
When hardwired at 240V, the integrated Comfort$aver® heating system provides up to 8,189 BTUs of supplemental warmth for areas up to 1,000 square feet. Flame-only, heat-disable, and air-circulation modes allow the Optimyst Linear 86 to be enjoyed throughout the year, whether heat is needed or not.
| Product Details | |
| BTUs | 3480 at 120 V / 8189 at 240 V |
| Carton Weight | 242 lbs |
| Cut Out Dimensions | 88" W x 31-3/4" H x 12" D |

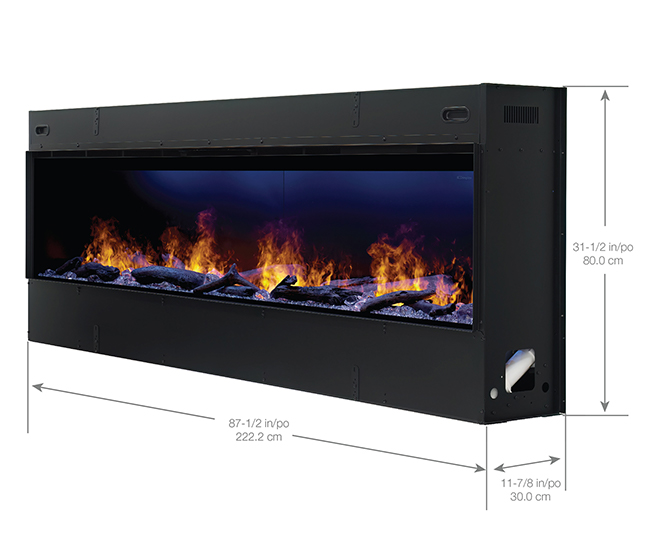

| Dimensions | 87-1/2" W x 31-1/2" H x 11-7/8" D |
| Heating Range | Up to 1000 sq. ft |
| Installation | Designed for permanent installation in an existing wall or new construction |
| Outdoor Rated | No |
| Remote Features | Sight and Sound App and Remote |
| Voltage | 120 / 240 V |
| Warranty | 2 Year In-Home Service and Parts |
| Wattage | 1020 / 2400 W |
| Wiring | Direct-wire or plug-in |
- Optimyst® Flame Effect — Patented Dimplex technology uses water vapor and light to create the world’s most realistic 3D flame and smoke.
Multicolor LED Lighting — Advanced RGB lighting projects vivid color onto the vapor flames, offering customizable hues and dynamic transitions.
Design Flexibility — Four installation options—front, left-corner, right-corner, or bay—allow seamless integration into any wall or architectural design.
Fully-Sealed Glass — A continuous glass front maintains a clean, modern appearance while keeping the vapor flame stable and draft-free.
Continuous Water Supply — Connects directly to a main water line for uninterrupted operation, or use the refillable reservoir for easy setup.
Optional Crackling Sound Effects — Add the gentle sound of a real wood fire for a full sensory experience.
Heat-Free Ambience — Enjoy the beauty of true flame realism without heat, perfect for all-season enjoyment.
Flame Connect App Control — Adjust flame color, brightness, and sound from the Dimplex Flame Connect App or the included remote.
Eco-Friendly Operation — Runs only on water and electricity—no fuel, emissions, or venting required.
Custom Flame Shape — Included spacers and inserts let you tailor flame height and width to your preferred look.
| Product Warranty Information | |
|---|---|
| Parts | 2 Years |
| Service | 2 Years |
